Installing a Hardwood Timber Roof Lantern

Here are a series of photos showing a hardwood timber roof lantern being assembled and fitted onto a preformed up-stand.

Construct the main base frame using a suitable glue with the connector bolts and wooden biscuits supplied.

The frame can then be fixed down to the up-stand onto a bed of mastic.

Ensure the frame is square and level with an even overhang on all internal sides.

Installing a Hardwood Timber Roof Lantern
Timber Roof Lantern assembly

Fix the four rafters that attach to the octagonal block on each end of the ridge and locate the assembly onto the main base frame lining it up with the gaps in the up-stand.

Installing a Hardwood Timber Roof Lantern
Timber Roof Lantern assembly

Continue to fix in place the rest of the rafters and then lay the black gasket on top of the rafters locating it into the groove provided.

Timber Roof Lantern
Timber Roof Lantern assembly

Lay the double glazed units onto the rafters with the stepped edge extending out over the edge of the plate.

Timber Roof Lantern assembly
Timber Roof Lantern assembly

When all the double glazed units are in place you can fix down the Exitex aluminum capping starting with the ridge.

Timber Roof Lantern assembly
Timber Roof Lantern assembly

Continue to fix down the rest of the capping starting with the two end rafters then all the hips, finishing with the center rafters.

The screw caps can then be tapped into place with a rubber mallet on each of the rafter caps and the main ridge section.

Timber Roof Lantern assembly
Timber Roof Lantern assembly

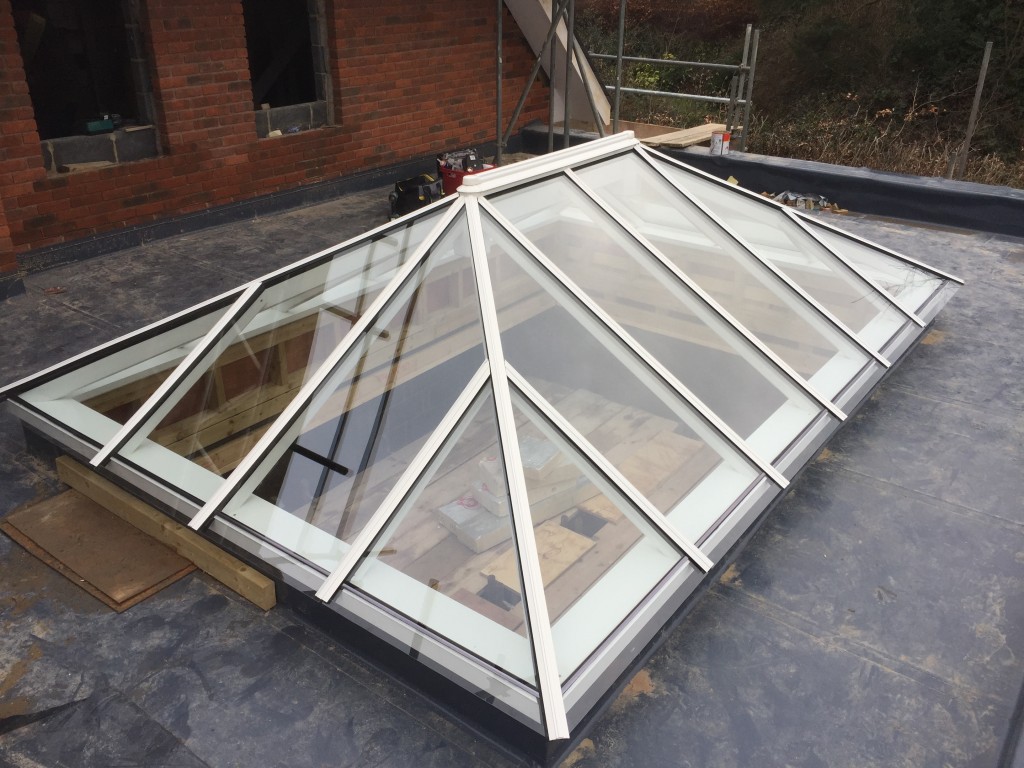

That completes the installation.
